Question1: The picture belongs to static content, you can configure static content cache in FS to meet this demand An LTM Specialist must configure session persistence for a highly available, highly utilized web-based application.
* The following requirements are provided:
* http proxy setup for security
persistence information available to the HA peer in case of failover
The LTM Specialist needs to minimize additional burden on the LTM device to the greatest extent possible.
Which persistence profile should be used?

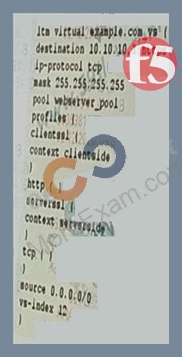

Question2: Refer to the exhibit.
Why is the virtual server responsive to incoming connections?
Question3: An LTM device is monitoring three pool members. One pool member is being marked down.
What should the LTM Specialist enable to prevent the server from being flooded with connections once its monitor determines it is up?
Question4: An unwanted IP addresstries to connect to the configuration utility via Self IP An LTM Specialist needs to block the attempts based on the IP address.
How should the ITM Specialist block the attempts without affecting other users?
Question5: An LTM Specialist needs to use a set of addresses to access an Internet website in an outbound configuration.
Whichfeature should the LTM Specialist configure?
Question6: An LTM Specialist uploaded new releases .iso and .md5 files titled "BIGIP-FILENAME" via the GUI.
Which commands are run via the command line from the root directory to verify the integrity of the new .iso file?
Question7: -- Exhibit -
-- Exhibit --

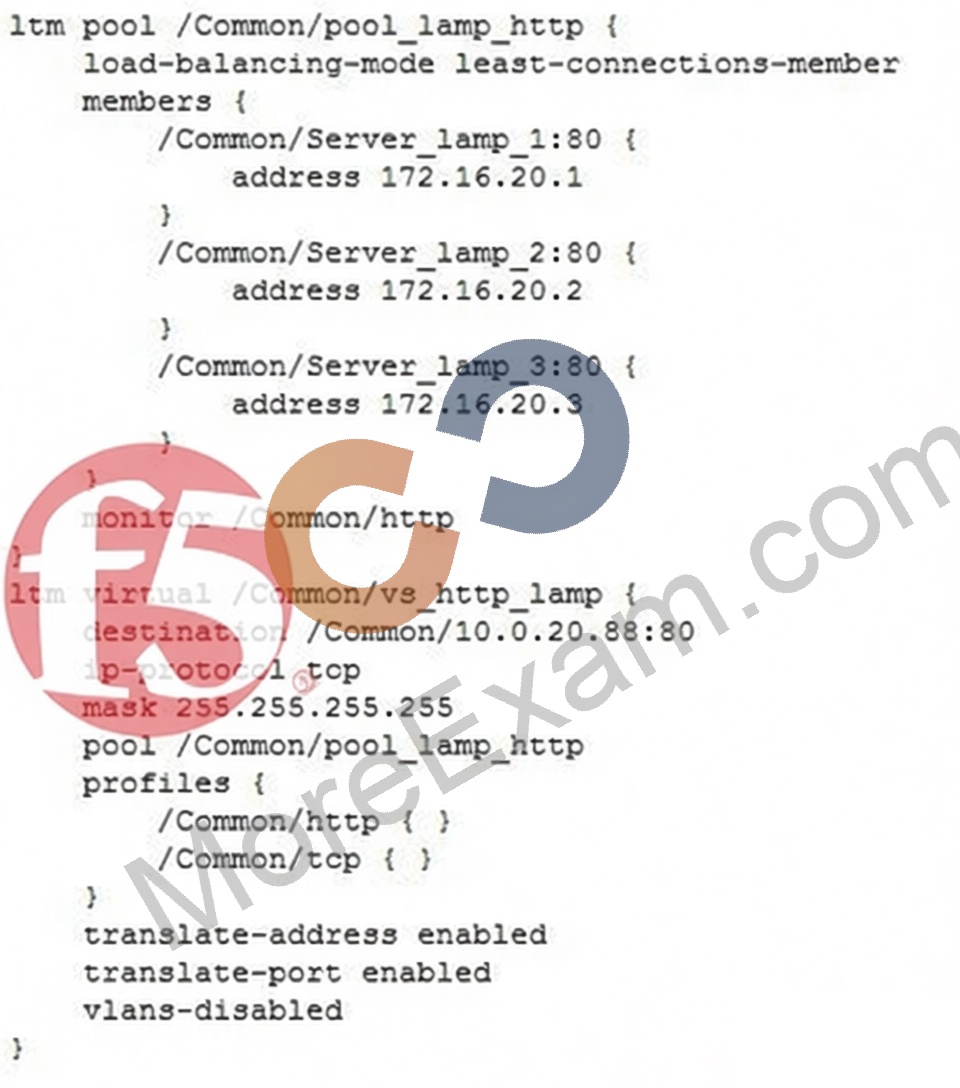

Refer to the exhibit.
An LTM Specialist is troubleshooting an HTTP monitor that is marking a pool member as down. Connecting to the pool member directly through a browser shows the application is up and functioning correctly.
How should the send string be modified to correct this issue?
Question8: The BIG-IP Administrator disable all pool members in a pool Users are still able to reach the pool members.
What is allowing users to continue to reach the disabled poo! members?
Question9: Users report that traffic is negatively affected every time a BIG-IP device fails over. The traffic becomes stabilized after a few minutes.
What should the BIG-IP Administrator do to reduce the impact of future failovers?
Question10: An LTM device needs an additional traffic group.
Which configuration item is required?

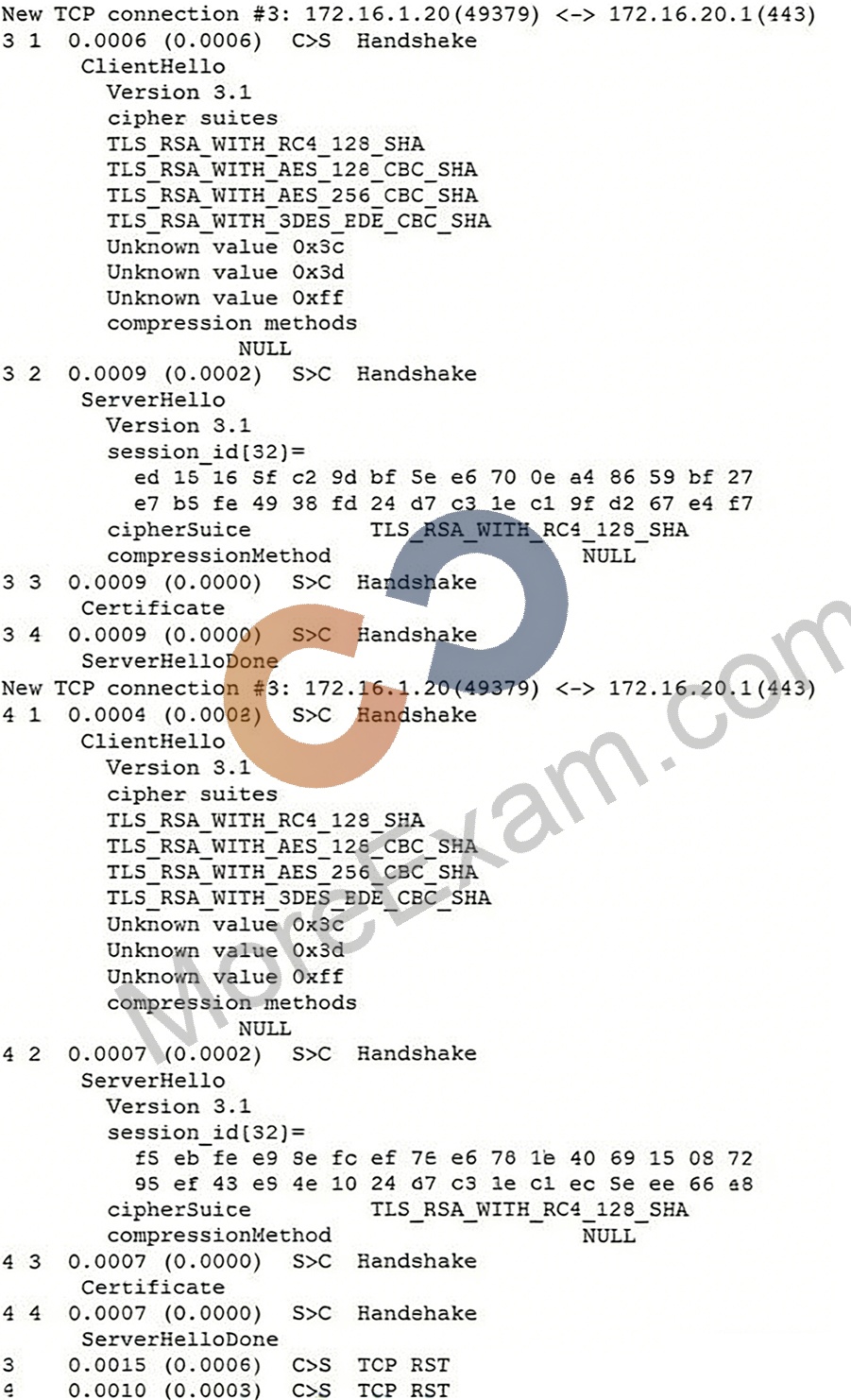

Question11: -- Exhibit -
-- Exhibit --
Refer to the exhibit.
A client attempts to connect from a Google Chrome browser to a virtual server on a BIG-IP LTM. The virtual server is SSL Offloaded. When the client connects, the client receives an SSL error. The client receives the same errors when trying Mozilla Firefox and Internet Explorer browsers.
The LTM Specialist does an ssldump on the virtual server and receives the results as per the exhibit.
How should this be resolved?
Question12: An LTM Specialist must perform a packet capture on a virtual server with an applied standard FastL4 profile.
The virtual server 10.0.0.1:443 resides on vlan301.
Which steps should the LTM Specialist take to capture the data payload successfully while ensuring no other virtual servers are affected?
Question13: A client (10.10.1.30) connecting to an HTTPS virtual server (10.10.1.100) with a clientssl profile is getting an SSL error.
Which options will trace this issue?
Question14: An LTM Specialist needs to provide access to a 8BG-IP to device for a company's support person access to the BIG IP device, but are NOT allowed to change any settings All support the support remote access to the BIG-IP device, but are NOTallowed to change ant settings. All support have accounts in the company's Active Directory Which method is appropriate to provide access for the support personnel to the BIG-JP device?
Question15: A new HITP server has been deployed on an LTM device. The application running on the server must be monitored by the LIM device. The following is required:
A new HITP server has been deployed on an LTM device. The application running on theserver must be monitored by the LIM device. The following is required:
When the server is unavailable, it will send an HTTP status code of 200 in response to a request for the status html page.
When the server is available. I will send and HTTP status code of 201 in response to a request for the status html page.
When the 200 status code is received, the pool member should receive No new connections.
Which configuration change should be made to meet these requirements?
Question16: A failover event is recorded in the log messages:
Jan 01 00:00:50 BIG-IP notice sod[5855]: 01140029:5: HA proc_running tmm fails action is go offline and down links.
Jan 01 00:00:50 BIG-IP notice sod[5855]: 010c0050:5: Sod requests links down.
Jan 01 00:00:50 BIG-IP notice sod[5855]: 010c0054:5: Offline for traffic group /Common/traffic-group-1.
Jan 01 00:00:50 BIG-IP notice sod[5855]: 010c003e:5: Offline
Jan 01 00:00:50 BIG-IP notice logger: /usr/bin/tmipsecd --tmmcount 4 ==> /usr/bin/bigstart stop racoon Jan 01 00:00:50 BIG-IP info lacpd[5502]: 01160016:6: Failover event detected. (Switchboard failsafe disabled while offline) Jan 01 00:00:51 BIG-IP err bcm56xxd[5296]: 012c0010:3: Failover event detected. Marking external interfaces down. bsx.c(3633) Jan 01 00:00:51 BIG-IP info bcm56xxd[5296]: 012c0015:6: Link: 1.1 is DOWN Jan 01 00:00:56 BIG-IP notice mcpd[5318]: 0107143c:5: Connection to CMI peer 10.0.0.3 has been removed Jan 01 00:00:56 BIG-IP notice mcpd[5318]: 0107143a:5: CMI reconnect timer: enabled Jan 01 00:00:56 BIG-IP notice mcpd[5318]: 01071431:5: Attempting to connect to CMI peer 10.0.0.3 port
6699
What is the cause of the failover?
Question17: What should the LT'M Specialist add to the virtual server?
Question18: An LTM Specialist configures a new virtual server with a single pool member. The LTM Specialist has NOT defined a health monitor for the pool, pool member or node.
What is the status of the virtual server?

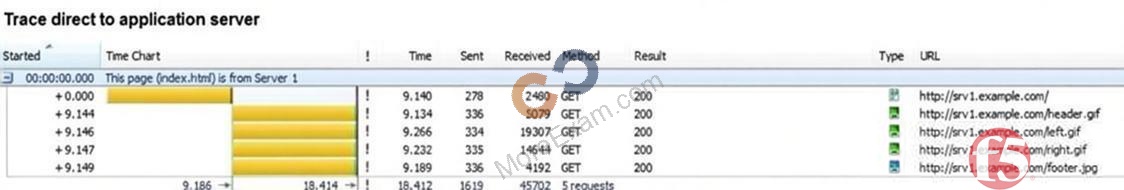

Question19: -- Exhibit -
-- Exhibit --
Refer to the exhibits.
Which two servers are missing two frequently used URLs? (Choose two.)
Question20: A BIG-IP Administrator needs to apply a license to the BIG-IP system to increase the user count from the base license.
Which steps should the BIG-IP Administrator?

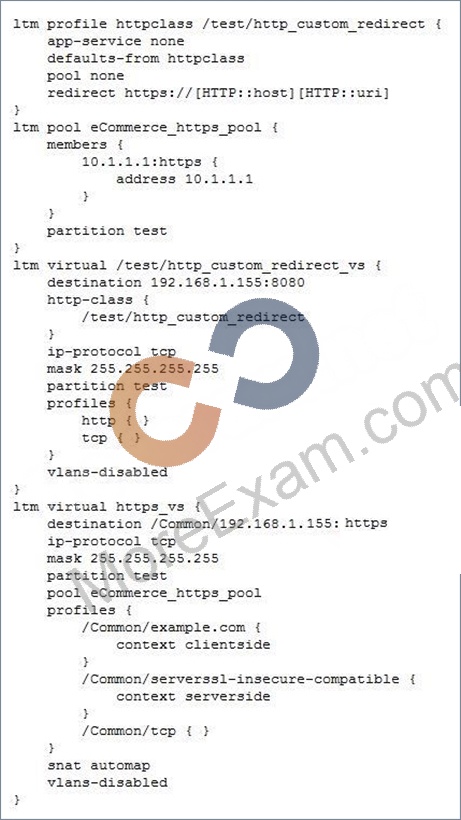

Question21: -- Exhibit -
-- Exhibit --
Refer to the exhibits.
An LTM Specialist is reconfiguring a virtual server to redirect all clients to HTTPS. Testing reveals that the redirect is functioning incorrectly. As part of the troubleshooting process, the LTM Specialist performs a packet capture.
What is the issue?
Question22: An LTM Specialist regularly provides analytics reports that show that traffic generated by different subnets within the organization. The LTM Specialist needs show the associate department names next the IP addresses in the reports.
Which step should the LTM Specialist take to meet this requirement?
Question23: -- Exhibit -
-- Exhibit --
Refer to the exhibits.
Every monitor has the same Send String, Recv String, and an Alias of *:*. The LTM Specialist simplifies the configuration to minimize the number of monitors.
How many unique monitors remain?
Question24: Refer to the exhibit.
A BIG-IP Administrator creates a new Virtual Server. The end user is unable to access the page. During troubleshooting, the administrator learns that the connection between the BIG-IP system and server is NOT set up correctly.
What should the administrator do to solve this issue?
Question25: -- Exhibit -
-- Exhibit --
Refer to the exhibits.
Users are able to access the application when connecting directly to the web server but are unsuccessful when connecting to the virtual server.
What is the cause of the application access problem?
Question26: A BIG-IP Administrator opens a case with F5 Support. The support engineer requests the BIG-IP appliance chassis serial number.
Which TMSH command will provide this information?
Question27: Refer to the exhibit
The network team creates a new VLAN on the switches. The BIG-IP Administrator needs to create a configuration on the BIG-IP device. The BIG-IP Administrator creates a new VLAN and Self IP, but the servers on the new VLAN are NOT reachable from the BIG-IP device.
Which action should the BIG-IP Administrators to resolve this issue?
Question28: Some users who connect to a busy Virtual Server have connections reset by the BIG-IP system. Pool member resources are NOT a factor in this behavior. What is a possible cause for this behavior?
Question29: An LTM Specialist is creating a custom EAV monitor.
In which directory should the LTM Specialist upload the script?

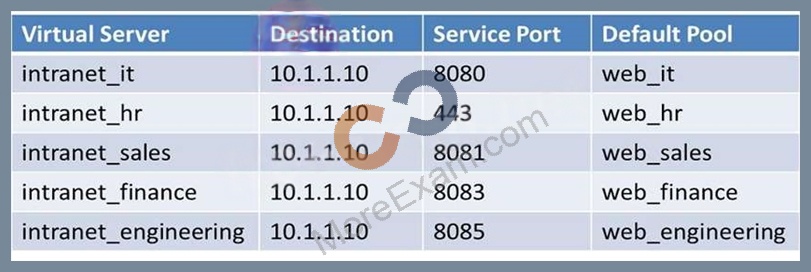

Question30: -- Exhibit -
-- Exhibit --
Refer to the exhibit.
An LTM Specialist is reviewing the virtual server configuration on an LTM device.
Which two actions should the LTM Specialist perform to minimize the virtual server configuration? (Choose two.)
Question31: -- Exhibit -
-- Exhibit --
Refer to the exhibit.
An LTM Specialist is troubleshooting an issue with an application configured on an LTM device. The application works properly when accessed directly via the servers; however, it does not work when accessed via the LTM device. The virtual server, 192.168.1.211:443, is configured to SNAT using the address
192.168.1.144 and references a pool with the member 192.168.10.80:443. The virtual server has no Client or Server SSL profiles associated.
Which configuration change will allow the application to function through the virtual server?
Question32: A BIG-IP Administrator needs to view the CPU utilization of a particular Virtual Server. Which section of the Configuration Utility should the administrator use for this purpose?
Question33: An HA pair of LTM devices that load balance multiple HTTPS applications utilizes highly customized RAM Cache and compression profiles on each virtual server. The LTM Specialist who is administering the HA pair regularly observes entines in the log similar to the following:
tmm tmm I708S1 011e0002.4. sweeper_update: aggressive mode activated (117504/138240 pages) No DoS attacks arc occurring. No user problems have been reported. Which step should the LTM Specialist take to help mitigate the issue?
Question34: -- Exhibit -
-- Exhibit --
Refer to the exhibits.
Users are able to access the application when connecting to the virtual server but are unsuccessful when connecting directly to the application servers. The LTM Specialist wants to allow direct access to the application servers.
Which configuration change resolves this problem?
Question35: -- Exhibit -
-- Exhibit --
Refer to the exhibit.
A user is unable to access an HTTP application via a virtual server.
What is the cause of the failure?
Question36: An LTM Specialist with the Administrator role and terminal access of "tmsh" logs in via ssh and is in the Traffic Manager Shell. The LTM Specialist wants to enter the bash shell to review log files.
Which command does the LTM Specialist need to run to access the bash shell?
Question37: A web server's default gateway is the network router. The LTM Specialist needs to introduce an LTM device to load balance to the web servers without changing the server's default gateway.
Which deployment method and settings should the LTM Specialist use to ensure correct traffic flow and that the web servers can obtain the actual con IP addresses?
Question38: Refer to the exhibit.
The http monitor is applied to a pool All members are enabled One pool member stops responding TCP port
80. The server still responds to ping.
What is the resulting status ofthis pool member?
Question39: An LTM device is monitoring pool members on port 80. The LTM device is using an HTTP monitor with a send string of GET / and a blank receive string.
What would cause the pool members to be marked down?
Question40: For a given Virtual Server, the BIG-IP must perform SSL Offload and negotiate secure communication overTLSvl.2only.
What should the BIG-IP Administrator do to meet this requirement?
Question41: A Web Server Administrator uses a manual process to display a page when the service is down.
Which feature on the LTM device should be used to automate the service down page? :
Question42: A BIG-IP Administrator is working with a BIG-IP device and discovers that one of the Interfaces on a Trunk is DOWN.
What is the reason for this Interface status?
Question43: A pool with a default connection limit is configured to use Round Robin as the load balancing method. An LTM Specialist needs to ensure that the LTM device selects a serverwith the fewest number of connections when new clients connect. Another pool is using the same set of backend servers.
Which load balancing-method should the pool be changed to?
Question44: What is a benefit provided by F5 Enterprise Manager?
Question45: What should the 816-IP Administrator provide when opening a new ticket with F5 Support?
Question46: An HTTP 1.1 application utilizes chunking.
Which header should be used to notify the client's browser that there are additional HTTP headers at the end of the message?
Question47: Refer to the exhibit.
A BIG-IP Administrator needs to configure health monitors for a newly configured server pool named Pool_B.
Which health monitor settings will ensure that all pool members will be accurately marked as available or unavailable?
Question48: A BIG-IP Administrator is creating a new Trunk on the BIG-IP device. What objects should be added to the new Trunk being created?
Question49: The following decoded TCPDump capture shows the trace of a failing health monitor.
00:00:13.245104 IP 10.29.29.60.51947 > 10.0.0.12.http: P 1:59(58) ack 1 win 46 <nop,nop,timestamp
2494782300 238063789> out slot1/tmm3 lis=
0x0000: 4500 006e 3b19 4000 4006 ce0c 0a1d 1d3c E..n;.@.@......<
0x0010: 0a00 000c caeb 0050 8be5 aca3 dd65 e3e1 .......P.....e..
0x0020: 8018 002e 1b41 0000 0101 080a 94b3 5b5c .....A........[\
0x0030: 0e30 90ad 4745 5420 2f74 6573 745f 7061 .0..GET./test_pa
0x0040: 6765 2e68 746d 6c20 4854 5450 312e 310d ge.html.HTTP1.1.
0x0050: 0a48 6f73 743a 200d 0a43 6f6e 6e65 6374 .Host:...Connect
0x0060: 696f 6e3a 2043 6c6f 7365 0d0a 0d0a 0105 ion:.Close......
0x0070: 0100 0003 00 .....
00:00:13.245284 IP 10.0.0.12.http > 10.29.29.60.51947: . ack 59 win 362 <nop,nop,timestamp 238063789
2494782300> in slot1/tmm3 lis=
0x0000 0ffd 0800 4500 00c9 6f68 4000 8006 755d [email protected]]
0x0010 0a29 0015 0a29 0103 0050 e0d6 4929 90eb .)...)...P..I)..
0x0020 6f12 d83c 8019 fab3 9b31 0000 0101 080a o..<.....1......
0x0030 0068 4e10 5240 6150 4854 5450 2f31 2e31 .hN.R@aPHTTP/1.1
0x0040 2034 3030 2042 6164 2052 6571 7565 7374 .400.Bad.Request
0x0050 0d0a 436f 6e74 656e 742d 5479 7065 3a20 ..Content-Type:.
0x0060 7465 7874 2f68 746d 6c0d 0a44 6174 653a text/html..Date:
0x0070 2054 6875 2c20 3231 204a 616e 2032 3031 .Mon,.01.Jan.201
0x0080 3020 3138 3a35 383a 3537 2047 4d54 0d0a 2.00:00:01.GMT..
0x0090 436f 6e6e 6563 7469 6f6e 3a20 636c 6f73 Connection:.clos
0x00a0 650d 0a43 6f6e 7465 6e74 2d4c 656e 6774 e..Content-Lengt
0x00b0 683a 2032 300d 0a0d 0a3c 6831 3e42 6164 h:.20....<h1>Bad
0x00c0 2052 6571 7565 7374 3c2f 6831 3e .Request</h1>
The health monitor is sending the string shown in the capture; however, the server response is NOT as expected. The correct response should be an HTML page including the string 'SERVER IS UP'.
What is the issue?
Question50: Remote office users are having performance issues with a virtual hosted on the F5 LTM. The LTM Specialist reviews the configuration for the virtual server and determine that some settings are set with default profiles.
Which profile should the LTM Specialist enable to improve virtual server performance?
Question51: The network team introduces a new subnet 10.10.22.0/24 to the network. The route needs to be configured on the F5 device to access this network via the 30.30.30.158 gateway.
How should the LTM Specialist configure thisroute?
Question52: An LTM Specialist is troubleshooting a problem on an eCommerce website. The user browses the online store using port 80, adding items to the shopping cart. The user then clicks the "Checkout" button on the site, which redirects the user to port 443 for the checkout process. Suddenly, the user's shopping cart is shown as empty.
The shopping cart data is stored in memory on the server, and the default source address persistence profile is used on both virtual servers.
How should the LTM Specialist resolve this issue?
Question53: -- Exhibit -
-- Exhibit --
Refer to the exhibits.
An LTM Specialist is troubleshooting an application configured on an LTM device on a one-armed configuration. The application is NOT working through the LTM device but does work when accessed directly via the application servers. The virtual server 192.168.1.211:443 is configured to SNAT using the address
192.168.1.144 and references a pool with the member 192.168.10.80:443. No Client or Server SSL profiles are associated. The LTM Specialist has collected two traffic captures to help determine the issue.
What is the problem with the configuration on the LTM device?
Question54: A BIG-IP Administrator reviews the log files to determine the cause of a recent problem and finds the following entry.
Mar 27.07.58.48 local/BIG-IP notice mcpd {5140} 010707275 Pool member 172.16.20.1.10029 monitor status down.
What is the cause of this log message?
Question55: Exhibit.
The LTM devicesLTM1 and LTM2 are configured in a Device Group (Sync Failover) with Network Failover configured on both the management and HA and Internal VLANS. and ConfigSync is confined in a Device Group (Sync Failover) with Network Failover and internal are tagged ona single trunk with subnets Connection Mirroring is configured on both the HA interlace directly connected between LTM1 and LTM2, and the management interlace is connected to a management switch. The LTM devices have four Traffic Groups defined, and both LTM devices are healthy and capable of passing traffic for any of the Traffic Groups.
An LTM Specialist disconnects the cable for the HA network in an effort to test failover.
Which HA functionality works in this case?
Question56: An LTM Specialist has just manually failed the active LTM device over to the standby LTM device. The LTM Specialist notices the newly active LTM device is NOT currently receiving traffic. The LTM Specialist verifies the newly active device is responding to ARP but still no traffic is hitting the virtual servers. The LTM Specialist also notices that the virtual servers eventually start responding.
What should be added to the configuration to resolve the problem?
Question57: A virtual server is configured to handle https traffic. The clientssl profile is configured to use a2048-bit RSA key. Due to security requirements, is the LTM Specialist needs to use a 4096-bit RSA key in the future.
What two effects will this change have on the BIG-IP device? (Choose two)
Question58: An LTM Specialist is troubleshooting an HTTP monitor. The pool member is accessible directly through a browser, but the HTTP monitor is marking the pool member as down.
GET / HTTP/1.1
HTTP/1.1 400 Bad Request
DatE. Tue, 23 Oct 2012 21:39:07 GTM
Server: Apache/2.2.22 (FreeBSD) PHP/5.4.4
mod_ssl/2.2.22 OpenSSL/0.9.8q DAV/2
Content-LengtH. 226
Connection: close
Content-TypE. text/html; charset=iso-8859-1
How should the LTM Specialist resolve this issue?
Question59: An LTM Specialist is removing some of the load off an existing cluster by adding a adding a third BIG-IP device to the device group. The new device candeliver twice the performance of the other two devices.
The LTM Specialist needs to make sure that the BIG-IP device with the highest available capacity is always selected to take over a traffic group in the event of a failover.
Which failover method is most appropriate?
Question60: An LTM device receives a response string containing "error"
Which monitor type and parameter will mark the HTTP server as down?
Question61: Which Virtual Server type prevents the use of a default pool?
Question62: -- Exhibit -
-- Exhibit --
Refer to the exhibit.
An LTM Specialist has created a virtual server to balance connections to a pool of application servers and offload SSL decryption. Clients connect to the application at https://www.example.com/. The virtual server is configured with a clientssl profile but no serverssl profile. The application servers are listening on ports 80 and
443. Users are unable to connect to the application through the virtual server but are able to connect directly to the application server.
What is the root cause of the error?
Question63: A BIG-IP Administrator needs to install a HotFix on a standalone BIG-IP device, which has HD1.1 as the Active Boot Location. The BIG-IP Administrator has already re-activated the license and created an UCS archive of the configuration. In which sequence should the BIG-IP Administrator perform the remaining steps?
Question64: A webserver is being overloaded with HTTPS traffic. To decrease the load on the server, the LTM Specialist and the Server. Administrator decide to perform SSL offloading on the LTM device. The configuration of the virtual server is as follows:
Which change must be made to the configuration to perform SSL offloading?
Question65: An TLM Specialist has an Exchange that must use the LTM device to route traffic to the internet.
Which SNAT/NAT configure allows the Exchange server's traffic access the internet through the LTM device?
Question66: An LTM Specialist configures a new HTTP virtual server on an LTM device external VLAN. The web servers are connected to the LTM device internal VLAN. Clients trying to connect to the virtual server are unable to establish a connection. A packet capture shows an HTTP response from a web server to the client and then a reset from the client to the web server.
From which two locations could the packet capture have been collected? (Choose two.)
Question67: A development team needs to apply a software fix and troubleshoot one of its servers. The BIG-IP Administrator needs to immediately remove all connections from the BIG-IP system to the back end server.
The BIG-IP Administrator checks the Virtual Server configuration and finds that a persistence profile is assigned to it. What should the 8IG-IP Administrator do to meet this requirement?
Question68: A high-availability (HA) pair configuration uses only the hardwire serial cable connection to determine device state. A power outage occurs to the PDU powering the active unit. The standby unit takes over the active role as expected.
How is the peer unit able to determine the active unit is unavailable?
Question69: An organization's development team creates an application to put behind the F5LTM device. The application can be quite load intensive at first, and then evens out over time. The team's load balancing method needs to select a pool after taking into account the pool member's response over the time to avoid landing on a busy pool member.
Which of the following load balancing methods meets this requirement?
Question70: Consider the monitor configuration displayed below.
What is the status of a pool member that responds with ''200 OK''?
Question71: An F5 LTM Specialist needs to perform an LTM device configuration backup prior to RMA swap.
Which command should be executed on the command line interface to create a backup?
Question72: Which file should the BIG-IP Administrator check to determine when a Virtual Server changed its status
Question73: An LTM device supports two power supplies. The value of the BigDB key "platform.powersupplymonitor" is equal to enable.
Where would the error message be visible if one of the power supplies fails or is NOT plugged in?
Question74: A BIG-IP device is configured with both an internal external and two Corporate VLANs. The virtual server has SNAT enabled and is set to listen on all VLANs Auto Last Hop is disabled. The Corporate users are on
10.0.0.0./24 and 172.16.0.0/12. The BIG-IP has a Self-IP on the 1.0.0.0.0./24 subnet.
Internet users are able to access the virtual server. Only some of the Corporate users are able to connect to the virtual server A BIG-IP Administrator performs a tcpdump on the BIG-IP and verifies that traffic is arriving from users in 10.0.0.0/24.
What should the BIG-IP Administrator do to correct this behaviour?
Question75: A new DNS virtual server has been configured. Testing reveals that DNS server has failed to accept DNS over TCP. The configuration of the virtual server is as follows:
Which action should be taken to correct this issue?
Question76: What should the BIG-IP Administrator do to apply and activate a hotfix to a BIG-IP device that is currently running version 11.0.0 on active partition HD1.1?
Question77: An LTM Specialist configures an HTTP monitor as follows:
ltm monitor http stats_http_monitor {
defaults-from http
destination *:*
interval 5
recv "Health check: OK"
send "GET /stats/stats.html HTTP/1.1\\r\\nHost: www.example.com\\r\\nAccept-EncodinG. gzip, deflate\\r\\nConnection: close\\r\\n\\r\\n" time-until-up 0 timeout 16
}
The monitor is marking all nodes as down. A trace of the HTTP conversation shows the following:
GET /stats/stats.html HTTP/1.1
Host: www.example.com
Accept-EncodinG. gzip, deflate
Connection: close
HTTP/1.1 401 Authorization Required
DatE. Tue, 23 Oct 2012 19:38:56 GMT
Server: Apache/2.2.15 (Unix)
WWW-AuthenticatE. Basic realm="Please enter your credentials"
Content-LengtH. 480
Connection: close
Content-TypE. text/html; charset=iso-8859-1
Which action will resolve the problem?
Question78: An LTM Specialist is troubleshooting an HTTP monitor. The pool member is accessible directly through a browser, but the HTTP monitor is marking the pool member as down.
GET / HTTP/1.1
HTTP/1.1 400 Bad Request
DatE. Tue, 23 Oct 2012 21:39:07 GTM
Server: Apache/2.2.22 (FreeBSD) PHP/5.4.4
mod_ssl/2.2.22 OpenSSL/0.9.8q DAV/2
Content-LengtH. 226
Connection: close
Content-TypE. text/html; charset=iso-8859-1
Which issue is the pool member having?
Question79: A local user account (Users) on the BIG-IP device is assigned the User Manager role. Userl attempts to modify the properties of another account (User2), but the action fails. The BIG-IP Administrator can successfully modify the User2 account.
Assuming the principle of least privilege, what is the correct way to allow User 1 to modify User2 properties?
Question80: A stand-alone LTM device is to be paired with a second LTM device to create an active/standby pair. The current stand-alone LTM device is in production and has several VLANs with floating IP addresses configured. The appropriate device service clustering (DSC) configurations are in place on both LTM devices.
Which two non-specific DSC settings should the LTM Specialist configure on the second LTM device to ensure no errors are reported when attempting to synchronize for the first time? (Choose two.)
Question81: Refer to the exhibit.
The http monitor is applied to a pool. All members are enabled. One server responds as follows.
What is the resulting status of this poo! member?
Question82: Interface 1.2 on a BIG-IP VE has a status of UNINITIALIZED. What is the reason for this status?
Question83: An LTM Specialist reports that an application si no longer reachable after it has beenupgraded.
Nothing has been changed in the configuration on the LTM device.
The logs indicates that health monitors to all servers have failed as shown:
What should the LTM Specialist verify next?
Question84: Refer to the exhibit.
How are new connections load balanced?
Question85: What is the recommended procedure for upgrading a major TMOS release on a BIG-IP platform?
Question86: OneLTM device in an HA pair of LTM devices is unable to reach its default gateway. An HA Failover event needs to happen.
Which configuration item enables this behavior?
Question87: A 8IG-IP Administrator configures a Virtual Server to load balance traffic between 50 webservers for an ecommerce website Traffic is being load balanced using the Least Connections (node) method.
The webserver administrators report that customers are losing the contents from their shopping carts and are unable to complete their orders.
What should the BIG-IP Administrator do to resolve the issue?
Question88: An LTM Specialist needs to create two virtual servers.
The application has links for both HTTP and HTTPS version of application. The client must be persistence to a pool member, no matter which virtual server isaccessed.
What must be selected in the Source Address Affinity persistence profile?
Question89: A BIG-IP Administrator must determine if a Virtual Address is configured to fail over to the standby member of a device group in which area of the Configuration Utility can this be confirmed?
Question90: A new web application is hosted at www.example.net, but some clients are still pointing to the legacy web application at www.example.com.
Which iRule will allow clients referencing www.example.com to access the new application?
Question91: An LTM device load balances a pool of routers. The LTM device needs to verify pathavailability to an HTTP server with the IP address 192 168.10 10. located beyond the routers.
Which monitor type and parameters arc required?
Question92: Given:
Filesystem Size Used Avail Use% Mounted on
/dev/md11 248M 248M 0 100% /
/dev/md13 3.0G 76M 2.8G 3% /config
/dev/md12 1.7G 1.1G 476M 71% /usr
/dev/md14 3.0G 214M 2.6G 8% /var
/dev/md0 30G 2.2G 26G 8% /shared
/dev/md1 6.9G 288M 6.3G 5% /var/log
none 3.9G 452K 3.9G 1% /dev/shm
none 3.9G 19M 3.9G 1% /var/tmstat
none 3.9G 1.2M 3.9G 1% /var/run
prompt 4.0M 12K 4.0M 1% /var/prompt
/dev/md15 12G 8.3G 3.1G 74% /var/lib/mysql
Which command is used to produce this output?
Question93: Which three HTTP headers allow an application server to determine the client's language compatibility, browser, operating system type, and compression compatibility? (Choose three.)
Question94: A LTM device needs to load balance active and passive FTP traffic while using only a single virtual server.
Which virtual server type should an LTM Specialist configure on the LTM device?
Question95: An LTM device provides load balancing to a web application? The LTM device has two dual-core processors and a licensed SSL Transactions Per Second (TPS) limit of 500 CMP is enabled.
TLS connections are used between client systems and virtual servers on the LTM device, as well as from the LTM device to servers used as part of LTM pool.
TLS enabled virtual servers utilize certificates based on 2048-bit keys During a peak period. 2560 new TLStransactions per second are attempted to the web application via the LTM device.
What will happen in this scenario?
Question96: The BIG-IP Administrator configures an HTTP monitor with a specific receive string. The status is marked
'down'.
Which tool should the administrator use to identify the problem?
Question97: Users are experiencing low throughput when downloading large files over a high-speed WAN connection.
Extensive packet loss was found to be an issue but CANNOT be eliminated.
Which two TCP profile settings should be modified to compensate for the packet loss in the network? (Choose two.)
Question98: An LTM Specialist needs to use the tmsh command to create a pool named http_pool with member
10.10.101:80 on an LTM device.
Which expression should the LTM Specialist use?
Question99: An LTM Specialist needs to force only FTP traffic, sourced from subnet 10.10.10.0/24 to virtual server 10.10.20.1 to the new FTP1 server. The following virtual servers are configured on the LTM device:
Traffic sourced from 10.10.10/24 must use the specific pool member for load balancing.
Which configuration change is needed to meet the requirements?
Question100: The interface 1.1 of the BIG-IP device has been connected to a link dedicated to traffic on VLAN 120. What should the BIG-IP Administrator do to receive traffic from the VLAN?
Question101: What do the following iRule commands do when they are used in the same iRule?
set hsl [HSL::open -proto UDP -pool syslog_server_pool]
HSL::send $hsl "<190> [HTTP::host] from [whereis [IP::client_addr] country continent state city zip] , IP:
[IP::client_addr]"
Question102: -- Exhibit --
-- Exhibit --
Refer to the exhibit.
A company uses a complex piece of client software that connects to one or more virtual servers (VS) hosted on an LTM device. The client software is experiencing issues. An LTM Specialist must determine the cause of the problem. The LTM Specialist has the tcpdump extract. The client loses connection with the LTM device.
Where is the reset originating?
Question103: Given a tcpdump on an LTM device from both sides of a connection on the External and Internal VLANs, how should an LTM Specialist determine if SNAT is enabled for a particular pool?
Question104: Active connections to pool members are unevenly distributed. The load balancing method is Least Connections (member) Priority Group Activation is disabled. What is a potential cause of the event distribution?
Question105: Given LTM device ltm log:
Sep 26 20:51:08 local/lb-d-1 notice promptstatusd[3695]: 01460006:5: semaphore mcpd.running(1) held Sep 26 20:51:08 local/lb-d-1 notice promptstatusd[3695]: 01460006:5:
Sep 26 20:51:08 local/lb-d-1 warning promptstatusd[3695]: 01460005:4: mcpd.running(1) held, wait for mcpd Sep 26 20:51:08 local/lb-d-1 info sod[3925]: 010c0009:6: Lost connection to mcpd - reestablishing.
Sep 26 20:51:08 local/lb-d-1 err bcm56xxd[3847]: 012c0004:3: Lost connection with MCP: 16908291 ...
Exiting bsx_connect.cpp(174)
Sep 26 20:51:08 local/lb-d-1 info bcm56xxd[3847]: 012c0012:6: MCP Exit Status Sep 26 20:51:08 local/lb-d-1 info bcm56xxd[3847]: 012c0012:6: Info: LACP stats (time now:1348717868) :
no traffic
Sep 26 20:51:08 local/lb-d-1 info bcm56xxd[3847]: 012c0014:6: Exiting...
Sep 26 20:51:08 local/lb-d-1 err lind[3842]: 013c0004:3: IO error on recv from mcpd - connection lost Sep 26 20:51:08 local/lb-d-1 notice bigd[3837]: 01060110:5: Lost connection to mcpd with error 16908291, will reinit connection.
Sep 26 20:51:08 local/lb-d-1 err statsd[3857]: 011b0004:3: Initial subscription for system configuration failed with error '' Sep 26 20:51:08 local/lb-d-1 err statsd[3857]: 011b0001:3: Connection to mcpd failed with error '011b0004:3:
Initial subscription for system configuration failed with error '''
Sep 26 20:51:08 local/lb-d-1 err csyncd[3851]: 013b0004:3: IO error on recv from mcpd - connection lost
.............skipping more logs.....
Sep 26 20:51:30 local/lb-d-1 notice sod[3925]: 01140030:5: HA proc_running bcm56xxd is now responding.
Sep 26 20:51:34 local/lb-d-1 notice sod[3925]: 01140030:5: HA proc_running mcpd is now responding.
Sep 26 20:51:34 local/lb-d-1 notice sod[3925]: 010c0018:5: Standby
Which daemon failed?
Question106: Which process can be eliminated by terminating SSL communication on the LTM device rather than the backend pool members?
Question107: A web application requires knowledge of the client's true IP address for logging and analysis purposes.
Instances of the application that can decode X-Forwarded-For HTTP headers reside in pool_a, while pool_b instances assume the source IP is the true address of the client.
Which iRule provides the proper functionality?
Question108: Refer to the exhibit.
A pool is contoured with four members. A user has a currentconnection established with 10.18.1.40. The virtual server has a persistence Profile configured.
Question109: An ecommerce company is experiencing latency issues with online shops during Black Friday's peak season.
The BIG-IP Administrator detects an overall high CPU load on the BIG-IP device and wants to move the top utilized Virtual Servers to a dedicated BIG-IP device.
Where should the BIG-IP Administrator determine the problematic Virtual Servers?
Question110: A 8IG-IP device is replaced with an RMA device. The BIG-IP Administrator renews the license and tries to restore the configuration from a previously generated UCS archive on the RMA device. The device configuration is NOT fully loading. What is causing the configuration load to fail?
Question111: A web server administrator informs the BIG-IP Administrator that web servers are overloaded Starting next month, the BIG-IP device will terminate SSL to reduce web server load. The BIG-IP device is ready using client SSL client profile and Rules on HTTP level. What actions should the BIG-IP Administrators to achieve the desired configuration?
Question112: Refer to the exhibit.
Which TMSH command generated this output?
Question113: In an iApp, which configuration protects against accidental changes to an application Services configuration?
Question114: An LTM device has been configured to log the reasons for generating TCP RST packets.
The following log entry occurs:
"01230140:3: RST sent from 192.168.1.100:80 to 192.168.1.124:39272, [0x112d82a:1721] {peer} TCP RST from remote system." Which condition will trigger this log entry?
Question115: -- Exhibit -
-- Exhibit --
Refer to the exhibits.
A customer requests to offload SSL for an internal website. The front page of the website loads correctly; however, selecting links on the page fails.
How should the LTM Specialist fix the issue?
Question116: A Virtual Server uses an iRule to send traffic to pool members depending on the URI. The BIG-IP Administrator needs to modify the pool member in the iRule.
Which event declaration does the BIG-IP Administrator need to change to accomplish this?
Question117: An LTM Specialist needs to terminate client SSL traffic and based on the cookie presented by client.
Which set of profiles should the LTM Specialist use?
Question118: There is a fault with an LTM device load balanced trading application that resides on directly connected VLAN vlan-301. The application virtual server is 10.0.0.1:80 with trading application backend servers on subnet 192.168.0.0/25. The LTM Specialist wants to save a packet capture with complete payload for external analysis.
Which command should the LTM Specialist execute on the LTM device command line interface?
Question119: Four members in a server pool have similar hardware platforms. An LTM Specialist needs the load balancing method that canselect the server with the fewest entries in the persistence table.
Which load balancing method should the LTM Specialist use?
Question120: -- Exhibit -
-- Exhibit --
Refer to the exhibit.
A pair of LTM devices are deployed in a high-availability (HA) pair as the diagram shows. After inserting a new rule on the firewalls, the LTM devices become Standby. The rule drops all outbound sessions to the Internet. Only inbound connections are allowed from the Internet. There are no other changes to the environment.
What triggered the LTM device failover?
Question121: A 8IG-IP Administrator is making adjustments to an iRule and needs to identify which of the 235 virtual server configured on the BIG-IP device will be affected.
How should the administrator obtain this information in an effective way?
Question122: A BIG-IP Administrator needs to collect HTTP status code and HTTP method for traffic flowing through a virtual server.
Which default profile provides this information?
Question123: -- Exhibit -
-- Exhibit --
Refer to the exhibit.
An LTM Specialist configures a virtual server to perform client-side encryption while allowing the server-side traffic to be unencrypted. Application owners report that images are failing to load through the virtual server; however, images load when going directly to the server.
What is the problem with the images loading through the virtual server?
Question124: Which procedure should an LTM Specialist follow to move a configuration from a 1500 to a 1600 hardware platform during an upgrade?
Question125: A 8IG-IP Administrator configures a node with a standard icmp Health Monitor. The Node shows as DOWN although the Backend Server is configured to answer ICMP requests. Which step should the administrator take next to find the root cause of this issue?
Question126: An LTM Specialist is configuring a virtual server with an IP address.
Which configuration is unsupported?
Question127: An SSL application is being migrated to the LTM device. Both encrypted and unencrypted traffic are accepted by the server. The virtual server configuration is as follows:
Which LTM device profile should be used on the LTM device to reduce the CPU load on the current.
Question128: -- Exhibit -
-- Exhibit --
Refer to the exhibits.
Which URL on which server is causing the highest latency for users?
Question129: An LTM Specialist is troubleshooting an issue with a new virtual server. When connecting through the virtual server, clients receive the message "Unable to connect" in the browser, although connections directly to the pool member show the application is functioning correctly. The LTM configuration is:
ltm virtual /Common/vs_https {
destination /Common/10.10.1.110:443
ip-protocol udp
mask 255.255.255.255
pool /Common/pool_https
profiles {
/Common/udp { }
}
translate-address enabled
translate-port enabled
vlans-disabled
}
ltm pool /Common/pool_https {
members {
/Common/172.16.20.1:443 {
address 172.16.20.1
}
}
}
How should the LTM Specialist resolve this issue?
Question130: An LTM Specialist is troubleshooting an issue with a new virtual server. When connecting through the virtual server, clients receive the message "The connection was reset" in the browser, although connections directly to the pool member show the application is functioning correctly.
ltm pool srv1_https_pool {
members {
192.168.2.1:https{
address 192.168.2.1
}
}
}
ltm virtual https_example_vs {
destination 192.168.1.155:https
ip-protocol tcp
mask 255.255.255.255
pool srv1_https_pool
profiles {
http { }
tcp { }
}
snat automap
vlans-disabled
}
How should the LTM Specialist resolve this issue?
Question131: -- Exhibit -
-- Exhibit --
Refer to the exhibit.
Users report that a web application works incorrectly. Sometimes contextual data displayed on the web pages is accurate; other times it is inaccurate.
The LTM administrator looks at the connection table with a filter on one of the client IP addresses currently connected using the command "tmsh show sys connection cs-client-addr 10.0.20.1" with the following results:
10.0.20.1:60048 10.0.20.88:80 10.0.20.1:60048 172.16.20.1:80 tcp 3 (tmm: 0)
10.0.20.1:60050 10.0.20.88:80 10.0.20.1:60050 172.16.20.3:80 tcp 3 (tmm: 0)
10.0.20.1:60047 10.0.20.88:80 10.0.20.1:60047 172.16.20.2:80 tcp 3 (tmm: 0)
10.0.20.1:60049 10.0.20.88:80 10.0.20.1:60049 172.16.20.1:80 tcp 3 (tmm: 0) What is the solution to the problem?
Question132: A BIG-IP Administrator needs to modify a virtual server that web offload web traffic compression tasks from the target server.
Which two profiles must the BIG-IP Administrator apply to a virtual server to enable compression? (Choose two)
Question133: A BIG-IP Administrator applied the latest hotfix to an inactive boot location by mistake, and needs to downgrade back to the previous hotfix.
What should the BIG-IP Administrator do to change the boot location to the previous hotfix?
Question134: -- Exhibit -
-- Exhibit --
Refer to the exhibit.
An LTM Specialist is investigating reports that users are unable to perform some commands through an FTP virtual server. The users are receiving the FTP error "500 Illegal PORT command." The virtual server is configured to SNAT using automap. The LTM Specialist performs a capture on the server side of the LTM device.
Why is the server returning this error?
Question135: Refer to the exhibit.
An LTM device has a virtual server mapped to www.f5.com. Users report that when they connect to
/resources/201.1.2h.l_l.com they are unable to receive content.
What is the likely cause of the issue?
Question136: TWO BIG-IP appliances need to be configured to load balance multiple firewall in a firewall sandwich, Which health monitor setting should be used to verify that the firewalls are able to forward traffic?
Question137: On the VCMP system, a BIG-IP host administrator imports a new ISO image into the host's /shared/images folder. The new ISO images that reside on the vCMP host are available for installation on the guest. How should the BIG-IP Administrator install one image from within the guest?
Question138: An LTM device configured with a management IP address and route and a series of self-IPs and TMM routes.Both management and TMM have a routing entry for 101 10/24 Application traffic is being load balanced and sent to pool member 10.1.1.123 with SNAT Automap and configured.
Which route will the LTM device use?
Question139: A device on the network is configured with the same IP address as the management address of the active LTM device, causing the management GUI to be inaccessible.
Which two methods should the LTM Specialist use to access the LTM device in order to change the management IP address? (Choose two.)
Question140: An LTM Specialist needs to deploy a virtual server that will load balance traffic targeting
https://register.example.com to a set of three webservers. Persistence needs to be ensured. No persistence mirroring is allowed SSL offloading is required.
A fourth web server with fewer resources will be used to handle requests from engine bots to
https://register.example.comvrobots.txt by an iRule. The(Rule will use the HTTP_REQUEST event. .
What are the required profile and persistence settings to implement this
Question141: -- Exhibit -
-- Exhibit --
Refer to the exhibit.
An LTM Specialist has a virtual server set up on the LTM device as per the exhibit. The LTM Specialist receives reports of intermittent issues. Some clients are connecting fine while others are failing to connect.
The LTM Specialist does a tcpdump on the relevant interfaces, with the following results extracted:
What is causing the intermittent issues?
Question142: AN LTM Specialist receives reports that an external company application is having reliability issues. The F5 Administrator finds the following in /vat/log/ltm file.
The LTM Specialist determines that the F5 LTMdevice is entering into Aggressive Mode Adaptive Reaping, which is causing the site reliability issues.
What is the most likely reason that the LTM device has entered into Aggressive Mode Adaptive Reaping?
Question143: The BIG-IP Administrator needs to perform a BIG-IP device upgrade to the latest version of TMOS. Where can the administrator obtain F5 documentation on upgrade requirements?
Question144: Refer to the exhibit.
A BIG-IP Administrator needs to deploy an application on the BIG-IP system to perform SSL offload and re-encrypt the traffic to pool members.
During testing, users are unable to connect to the application.
What must the BIG-IP Administrator do to resolve the issue?
Question145: When importing a PEM formatted SSL certificate, which text needs to appear first in the file?
Question146: A new VLAN vlan301 has been configured on a highly available LTM device in partition ApplicationA. A new directly connected backend server has been placed on vlan301. However, there are connectivity issues pinging the default gateway. The VLAN self IPs configured on the LTM devices are 192.168.0.251 and
192.168.0.252 with floating IP 192.168.0.253. The LTM Specialist needs to perform a packet capture to assist with troubleshooting the connectivity.
Which command should the LTM Specialist execute on the LTM device command line interface to capture the attempted pings to the LTM device default gateway on VLAN vlan301?
Question147: An LTM Administrator receives an email from the NOC stating that the switch connected to the backend server was shut down for maintenance. The BIG-IP device handles only UDP traffic. The BIG IP device did not fail over to a DR location when no pool members were available.
When theLTM Administrator checks the pool, it confirms that the monitor is still marking UP the pool member.
A tcpdump of the traffic shows the following output:
A list of the monitor configuration shows the following:
Which two modifications to the LTMconfiguration will mark this pool member down, when the switch is down? (Choose two.)
Question148: Which type of Virtual Server requires the use of a FastL4 profile?
Question149: An LTM Specialist needs to upgrade all guests on a Viprion eight CMP guests.
What is the maximum number of guests that the LTM Specialist should upgrade at once?
Question150: Refer to the exhibit.
How long will the persistence record remain in the table?
Question151: A custom TCP application using a single server is being migrated to the LTM device. A server is being added to the pool. The application is known to violate the TCP protocol RFC. Theapplication currently works without error from a user perspective.
Which virtual server type is appropriate in this situation?
Question152: A web application is meant to log the URI of the resource that responded to the client's initial Request-URI.
Which HTTP header will supply this information?
Question153: A BIG-IP Administrator needs to have a BIG-IP linked to two upstream switches for resilience of the external network. The network engineer who is going to configure the switch instructs the BIG-IP Administrator to configure interface binding with LACP. Which configuration should the administrator use?
Question154: An LTM device is load balancing telnet and ssh applications in a client/server environment experiencing significant packet delay.
Which setting in the TCP profile should reduce the amount of packet delay?
Question155: -- Exhibit -
-- Exhibit --
Refer to the exhibit.
Which step should an LTM Specialist take to utilize AVR?
Question156: -- Exhibit -
-- Exhibit --
Refer to the exhibit.
Users receive an error when attempting to connect to the website https://website.com. The website has a DNS record of 195.56.67.90. The upstream ISP has confirmed that there is nothing wrong with the routing between the user and the LTM device.
The following tcpdump outputs have been captured:
External Vlan, filtered on IP 168.210.232.5
00:25:07.598519 IP 168.210.232.5.33159 > 195.56.67.90.https: S 1920647964:1920647964(0) win 8192 <mss
1450,nop,nop,sackOK>
00:25:07.598537 IP 195.56.67.90.https > 168.210.232.5.33159: S 2690691360:2690691360(0) ack
1920647965 win 4350 <mss 1460,sackOK,eol>
00:25:07.598851 IP 168.210.232.5.33160 > 195.56.67.90.https: S 2763858764:2763858764(0) win 8192 <mss
1450,nop,nop,sackOK>
00:25:07.598858 IP 195.56.67.90.https > 168.210.232.5.33160: S 1905576176:1905576176(0) ack
2763858765 win 4350 <mss 1460,sackOK,eol>
Internal Vlan, filtered on IP 168.210.232.5
00:31:46.171124 IP 168.210.232.5.33202 > 192.168.100.20.http: S 2389057240:2389057240(0) win 4380
<mss 1460,nop,wscale 0,sackOK,eol>
What is the problem?
Question157: A BIG-IP Administrator needs to purchase new licenses for a BIG-IP appliance.
The administrator needs to know if a module is licensed and the memory requirement for that module.
Where should the administrator view this information in the System menu?
Question158: A BIG-IP Administrator plans to upgrade a BIG-IP device to the latest TMOS version.
Which two tools could the administrator leverage to verify known issues for the target versions?
(Choose two.)
Question159: The LTM Specialist is writing a custom HTTP monitor for a web application and has viewed the content by accessing the site directly via their browser. The monitor continually fails. The monitor configuration is:
ltm monitor http /Common/exampleComMonitor {
defaults-from /Common/http
destination *:*
interval 5
recv "Recent Searches"
send "GET /app/feed/current\?uid=20145 HTTP/1.1\\r\\nHost: www.example.com\\r\\nAccept-EncodinG.
gzip, deflate\\r\\nConnection: close\\r\\n\\r\\n"
time-until-up 0
timeout 16
}
A trace shows the following request and response:
Request:
GET /app/feed/current?uid=20145 HTTP/1.1
Host www.example.com
Accept-Encoding gzip, deflate
Connection: close
Response:
HTTP/1.1 302 Moved Temporarily
Date Wed, 17 Oct 2012 18:45:52 GMT
Server Apache
Location https://example.com/login.jsp
Content-Encoding gzip
Content-Type text/html;charset=UTF-8
Set-CookiE. JSESSIONID=261EFFBDA8EC3036FBCC22D991AC6835; Path=/app/feed/current?uid=20145 What is the problem?
Question160: The BIG-IP Administrator needs to ensure the correct health monitor is being used lor a new HTTP pool named P_example.
Where should the BIG-IP Administrator validate these settings in the Configuration Utility?
Question161: The BIG-IP Administrator generates QKView using tmsh command "qkview -SO". In which directory does the BIG-IP appliance save the QKView?
Question162: An LTM device pool has suddenly been marked down by a monitor. The pool consists of members
10.0.1.1:443 and 10.0.1.2:443 and are verified to be listening. The affected virtual server is 10.0.0.1:80.
Which two tools should the LTM Specialist use to troubleshoot the associated HTTPS pool monitor via the command line interface? (Choose two.)
Question163: A Standard Virtual Server configured for an application reports poor network performance. This application is accessed mainly from computers on the Internet.
What should the BIG-IP Administrator configure on the Virtual Server to achieve better network performance?
Question164: What should an LTM Specialist configure on an LTM device to send AVR notification emails?
Question165: An LTM Specialist needs to configures virtual server that uses PVA or OPVA Which virtual server type should be used?
